Configuration for Xirrus Lite Gateway Equipment

NOTE: These instructions are strictly for Xirrus Lite equipment and NOT the enterprise equipment. Screenshots of Xirrus

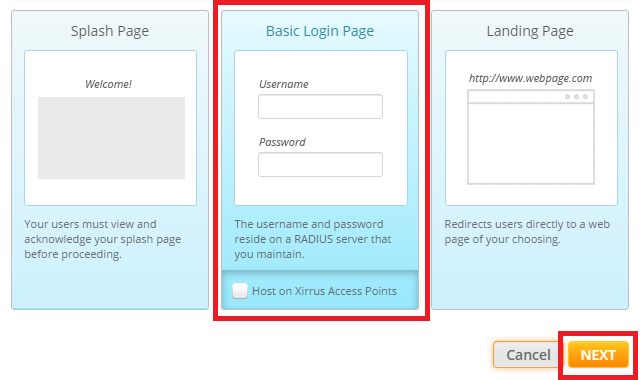

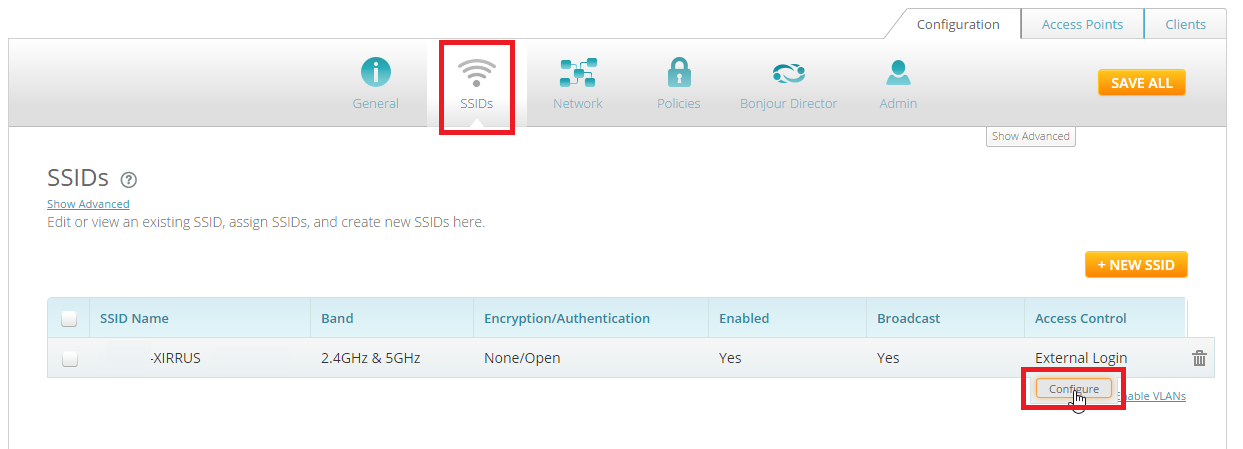

NOTE: These instructions are strictly for Xirrus Lite equipment and NOT the enterprise equipment. Screenshots of Xirrus Dashboard configuration:

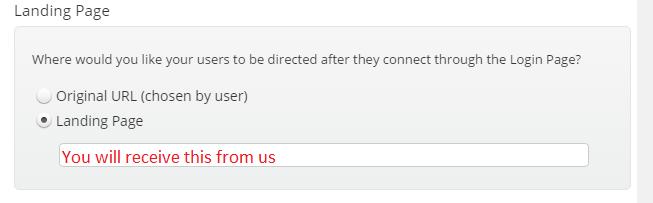

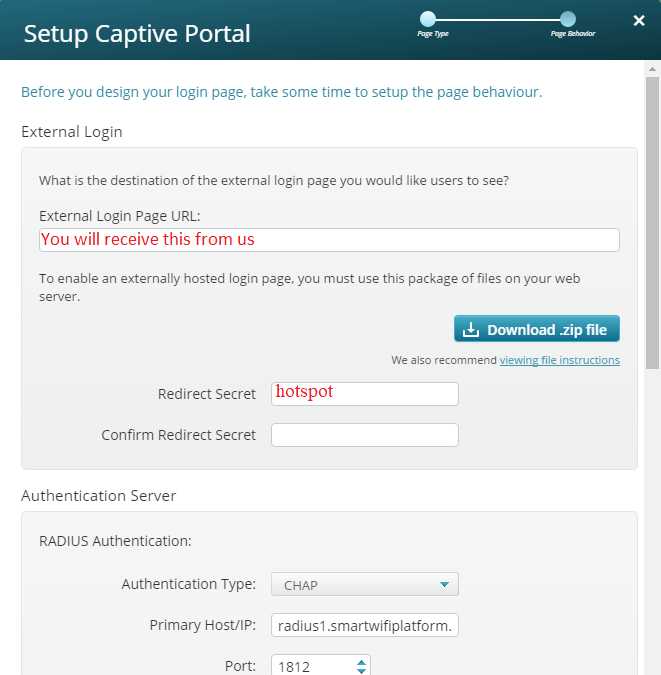

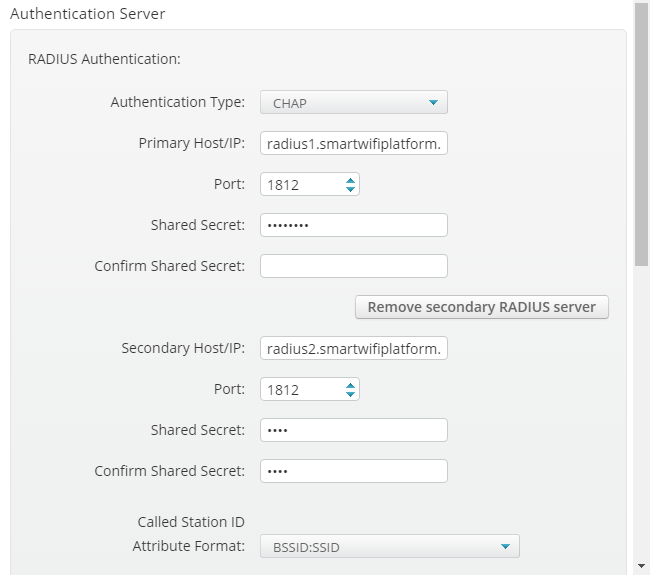

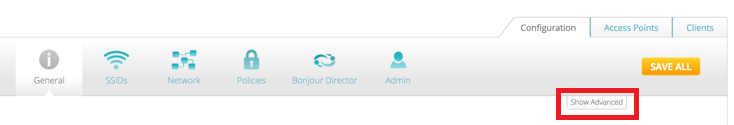

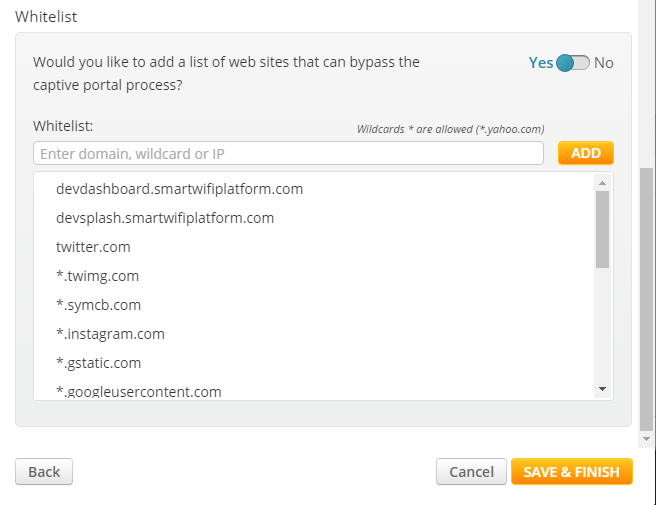

Settings: External Login Page URL:You will receive this from us. Redirect Secret: hotspot. Authentication Type: CHAP Primary Host/IP: radius1.smartwifiplatform.com Port: 1812 Shared Secret: You will receive this from us. Add a secondary Radius Server Secondary Host/IP: radius2.smartwifiplatform.com Port:1812 Shared Secret: You will receive this from us. Landing Page: You will receive this from us. White List: Please use the wildcard walled garden entries for the white list found  HERE. You will also need to configure RADIUS ACCOUNTING on the Xirrus device directly: While in the Profile click on the “Show Advanced”

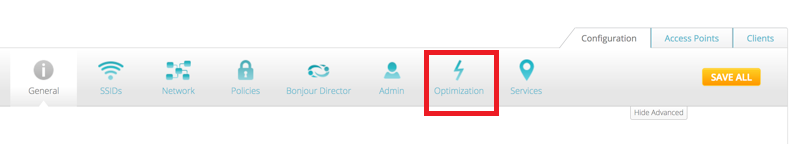

After you hit “Show Advanced” you should see a couple extra buttons:

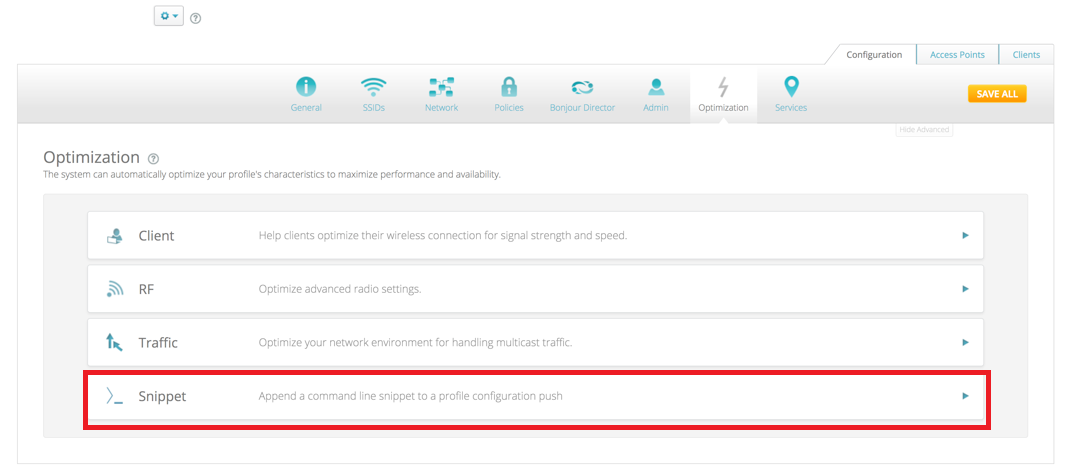

Select “Optimization” and then click “Snippets” and agree to the following notices:

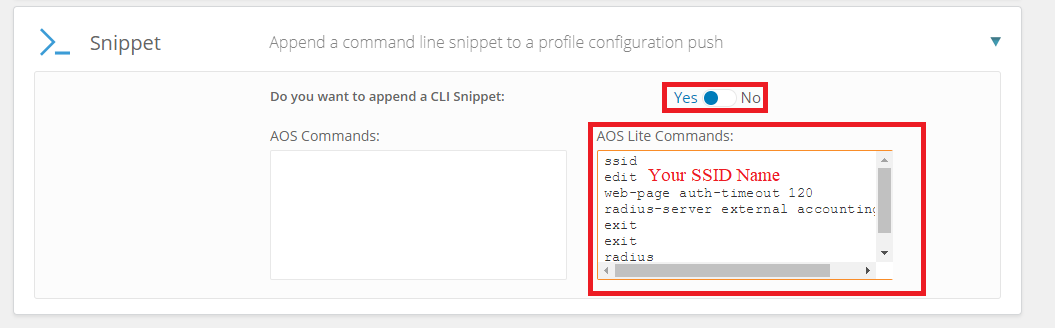

Inside the text box for AOS Lite enter the following code to enable RADIUS Accounting:

ssid edit web-page auth-timeout 120 radius-server external accounting on exit exit radius external nas-identifier : You will receive this from us. ***Note that by default Xirrus uses port 1813 when accounting is enabled so there is no need to enter it with the first code Snippet*** LIMITED HARDWARE SUPPORT: Hardware manufacturers frequently make changes to firmware, controllers and GUI’s. The information below may be out of date or images may be different and is to be used as a general reference guide. We do offer additional limited support to help with trouble-shooting and we highly recommend that you have a hardware support agreement and/or access to a hardware support engineering representative from the manufacturer.
